Dylan DiBeneditto
Electrical Engineer
College freshman who's interested in Electrical Engineering, Computer Science, and Math.
Attending Virginia Tech for a Bachelors in Electrical Engineering.
dyland26@vt.edu github resume photos
Rocketry @ VT | 2.4GHz and 915MHz Transciever
Rocketry @ VT | 2.4GHz and 915MHz Transciever
This board is me applying my knowledge from my keyboard projects into something that is helpful for the team. The intent of this board is to facilitate all RF telemetry signals through one board. The bands for this board are 2.4GHz Bluetooth and 915MHz LoRa Radio. Past rockets have had 915MHz and a redundant 2.4GHz system that wasn't used much. This board is equipped with a range extender which boosts the signal by 18dB, providing a 6x to 10x increase in range. The board takes in the raw 2S battery power, stepping down from about 8.4V to 5V with a switching buck converter, and down again from 5V to 3.3V with an LDO. While the switching regulator can introduce noise which isn't optimal for an RF board, the LDO would have to dissipate about 2W of heat, which is too much for one component to reliably handle. The board breaks out into 2 SMAs, 2 i2cs buses for sensors, USB, UART for a master controller, and an SWD and both SPIs broken out for debugging.
PCB Design
KiCad
Electronics
C
repo
fmov
fmov
What started as a project to create chess videos programmatically turned into the most efficient python library for generating videos, currently at 10k+ downloads on PyPi. I simply wanted something that would handle the interactions between FFmpeg and python, without having to hard-code shell commands. The library is simple, taking in image objects from PIL, piping them into FFmpeg, handling all of the flags for rendering, and finally assembling the video with any sound effects. Got to learn a lot about the process of creating effective projects for real users and writing documentation. 'pip install fmov'
Python
FFmpeg
PyPi
PIL
demo repo
K42
K42
A custom wireless split ergonomic mechanical keyboard with a 42 key layout (21 per half). Built around a bare-die nRF52840 MCU, with haptic feedback via a DRV2605L driver and LRA actuator, per-half OLED displays, and Kailh Choc V1 hotswap sockets. Designed in KiCad, from schematic capture through JLCPCB PCBA. Worked with impedance matching networks using a pi filter as well as trace antenna for 2.4GHz BLE connectivity. Also evaluated the margins on selling the completed keyboard pre-assembled, and found the difficulty between trying to stay competitive in the market and provide a scalable completed product.
PCB Design
KiCad
Electronics
C
CAD (Fusion360)
repo
PrintJava
PrintJava

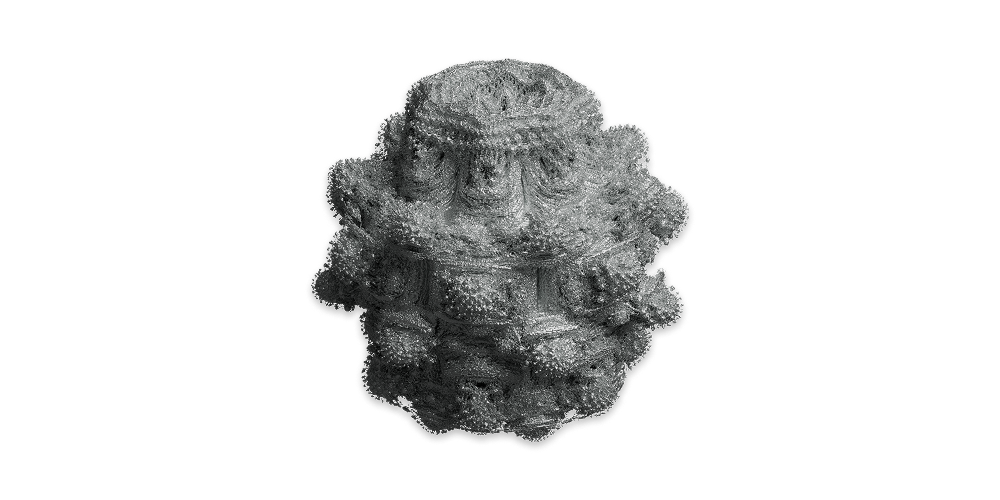

As president of my high school's Computer Science National Honor Society, we submitted a grant to the district for a 3D printer. Upon recieving the printer, I took it upon myself to create a project which would allow controlling the printer through code. This project was difficult, as there are no dependencies since the project must be installed manually to work with the software we use in school. That means I had to work out the logic—from turning a 3D function into a list of triangles, all the way down to converting my abstracted Java object's data straight into binary files. The model seen above is the Mandelbulb Fractal, and was generated with PrintJava. This library is now used as educational material for my high school's Computer Math and AP Computer Science classes.
Java
repo
Waldron Catering
Waldron Catering
Created a functional website for a catering business. Got to learn a lot about setting up and deploying websites, along with the design that goes into creating a professional feeling, responsive site. Making sure to account for all the small failure points that could occur and turn away customers was my top priority in designing the site, and I got a taste of SEO optimization too.
HTML
CSS
JavaScript
demo
MNIST Desmos Character Recognition
MNIST Desmos Character Recognition

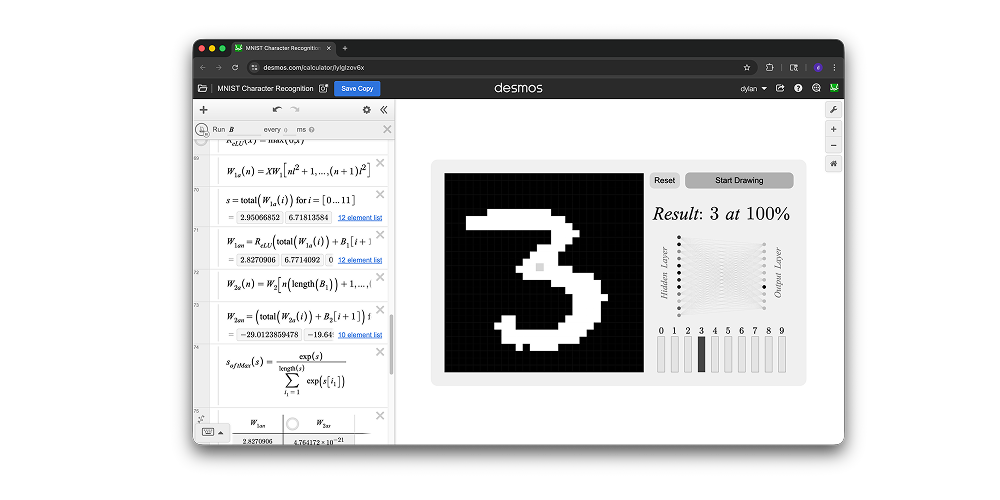

Winner of the 2025 Desmos Art Competition for the 17-18yo range. Built out the MNIST Character recognition inside of a graphing calculator. I trained the model in python using keras, came up with a way to export the weights and biases of the model, and built out the logic of a Multi-layer Perceptron Neural Net.
Python
Keras
Neural Networks
Machine Learning
demo repo
DOOM in a Calculator
DOOM in a Calculator
What started as a test for 3D using an experimental new feature in the Desmos calculator turned into a project that I worked on in my free time to get DOOM up in a graphing calculator. The underlying mechanic that makes this version so much more performant is the fact that the rendering is handled by the 3D version of Desmos, since they added a feature that allowed triangles outside of the bounding box. Since that handled all the raytracing, all I had to do was implement the math behind movement, triangle placement, getting images to be rendered through compiling images into triangle code for the graph, and most difficult of all: textures. There is a way to run shaders on surfaces in the calculator, but they take in an (x, y, z) value, and theres no way for it to store images, since multidimensional lists are unallowed. The way around this was I ran each RGB channel of each image texture through a fourier transform to 'vectorize' an image by mapping (u,v) coordinates with math functions. The coefficients generated could be imported into Desmos, and all that had to be done was mapping and tiling based on the orientation of the map. The final version ran at around 10fps which is much better than any other attempt. I found this project fulfilling because I couldn't just use AI or look up solutions, but rather I had to invent new solutions on my own.
Python
Machine Learning
3D Graphics
demo repo
Null36 Split Keyboard
Null36 Split Keyboard

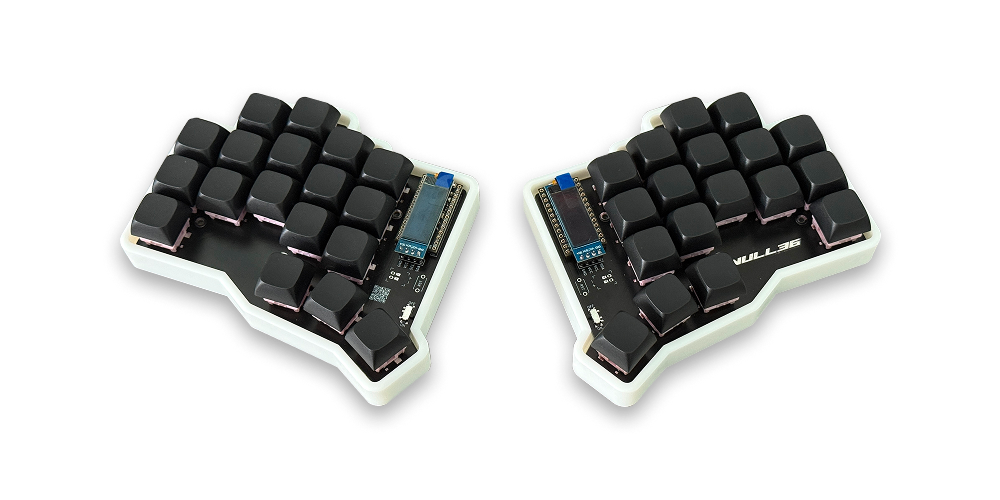

A fun project to get me into the world of electronics and hardware. Got to design my own wireless split keyboard that perfectly fit my hands and allowed me to customize my layout to maximize my productivity when programming. Created everything from scratch: the physical layout of the keys, wiring of the PCB, case, firmware, and key layout. Also got my first experience sending designs to manufacturers for both PCB and 3D printing. I found the process of turning my own ideas into a physically tangible product to be very satisfying.
PCB Design
CAD (Fusion360)
Electronics
C
Embedded Firmware
repo
